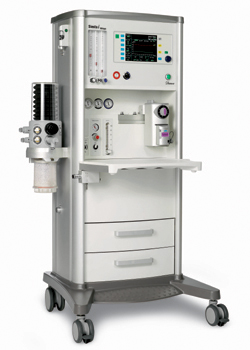

 Siesta i
Whispa |
|
|
|
| |
|
|
| |
Siesta i
Whispa
|
 |
|
integrated Breathing System |
|
innovative user friendly design |
|
inspiring Anaesthesia Workstation |
|
 New Whispa ventilator |
|
Integrated Breathing
System (IBS) |
|
Suitable for low
flow/minimal flow |
|
Minoxyguard (min. 25%
O2) |
|
Low maintenance costs |
|
Low lifetime costs |
|
Easy attachment of
patient monitor |
|
Ceiling pendants/wall
versions available |
|

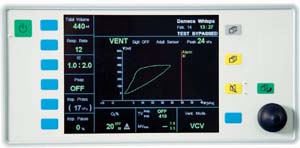

8" colour TFT screen
or monochrome 7" LCD screen |
|
Display with graph and
loop |
|
5 ventilation modes:
VCV, PCV, SIMV, manual & spontaneous |
|
Microprocessor
controlled ventilator |
|
Spirometry |
|
Built-in oxygen
analyzer |
|
Same bag-in-bottle for
adults and infants |
|
Automatic self test |
|
|
|
The Minoxyguard function ensures a minimum |
|
25% oxygen in O2/N2O mix, and is further
equipped |
|
with a slave regulator, cutting off N2O and giving |
|
audible alarm in case of O2 supply failure. |
|
Minoxyguard is also availabe with twin/dual flow |
|
The new IBS (Integrated Breathing System)
is a |
|
fusion of the bag-in-bottle, absorber, and patient |
|
circuit. These 3 parts are now integrated into one |
|
system, thus drastically reducing tubing connections |
|
between machine and patient. Built-in manual |
|
ventilation valve (5-50hPa), just above the manual |
|
Siesta i Whispa is equipped with various safety/ |
|
emergency features, such as fresh gas flow switch |
|
between circle system (IBS) and auxiliary gas outlet. |
|
Additional features: O2 flowmeter with separate
outlet |
|
with tube nipple and integrated patient suction unit. |
|
Back-bar for 2 selectatec vaporizers (German or |
|
British standard) with interlock safety mechanism. |
|
|
|
|
|
|
|
|
|
|
|
Anesthesia Machine
