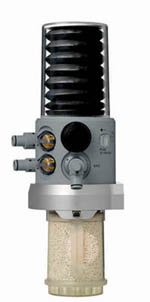

IBS - Integrated Breathing System |
With the IBS you can forget about time-consuming multiple tubing
connections |
between the machine, the patient system and the patient. The IBS
is a single |
integrated unit consisting of an ascending bag-in-bottle,
patient circuit and |
As a result of the fusion of these 3 parts, there are no patient
tubings between |
the IBS and the machine, and only 2 tubings (insp./exp.) between
the IBS |
This unique new system will thus save you time before an
operation, during |
preparation, and also after the operation during cleaning
procedures. |
|
|
The yellow valve flaps ensure a visual control of ongoing |
inspiration and expiration. A new handy manual respiration |
valve with pressure", "closed" and "spontaneous" mode is |
also integrated into the IBS. The manual bag connection is |
situated under the manual ventilation valve. |
Re-design of the well-known Dameca bag-in-bottle with |
ascending bellows. Capacity of 20-1500 ml. and infants can |
be ventilated by the same bag-in-bottle as adults. |
The new absorber design ensures maximum utilization of |
soda lime in the IBS, thus eliminating waste of unused soda |
lime. The capacity of the i-SORB is approx. 900g of soda |
lime, and is available in reusable or disposable versions. |
Correct attachment of the absorber is monitored by a |
|
|
|
|
|
|
|
|
|
