 Siesta
i TS |
|
|
|
| |
|
|
| |

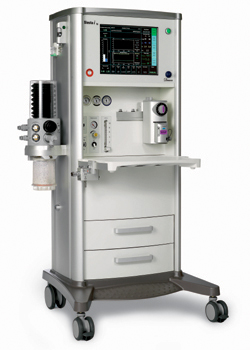

Siesta i TS
|
 |
|
innovative Touch Screen Interface |
|
integrated Breathing System |
|
inspiring Anaesthesia Workstation |
|
 Multi-gas monitor
(optional) |
|
Electronic gas mixer |
|
15" TFT colour touch
screen |
|
Microprocessor
controlled ventilator |
|
Spirometry |
|
Automatic self test |
|
Integrated Breathing
System (IBS) |
|
Suitable for low
flow/minimal flow |
|
Low maintenance costs |
|
Low lifetime costs |
|
Easy attachment of
patient monitor |
|
Ceiling pendants/wall
versions available |
|
|
|
The 15" TFT colour touch screen is used for ventilator and |
|
gas mixer settings, and measured ventilator and gas mixer |
|
reading/monitoring are displayed with graphs and loops. |
|
As a result of the high resolution, the user will benefit from |
|
the good contrast and wide-angle-view, which ensure an |
|
easy-to-read and easy-to-use display. Being equipped with |
|
the latest microprocessor and software technology, the gas |
|
mixer can be upgraded through a simple lap-top, without the |
|
need to change any components. |
|
Electronic rotameters for O2, N2O and air,
0-10 L/min. |
|
Automatic interlock safety mechanism preventing doseage |
|
of Air and N2O simultaneously. Minoxyguard function |
|
ensuring min. 25 % oxygen in an O2/N2O
mix. |
|
Our new microprocessor-controlled ventilator features 5 |
|
ventilation modes: VCV, PCV, SIMV, manual and spontaneous. |
|
The ventilator compensates for fresh-gas flow as well as |
|
compliance in the patient system. Digital and graphical |
|
display including O2, analyzer and spirometry with
loop. |
|
Same bag-in-bottle for adults and infants. Automatic self test |
|
Multi Gas Monitor (optional) |
|
Multi-gas monitor with continuous measurement of O2,
N2O, |
|
CO2, AA, respiration rate and MAC. The system has
automatic |
|
identification of anaesthetic agent. All values are displayed |
|
digitally and a CO2 graph is shown on the 15" screen. |
|
|
|
|
|
The new IBS (Integrated Breathing System)
is a |
|
fusion of the bag-in-bottle, absorber, and patient |
|
circuit. These 3 parts are now integrated into one |
|
system, thus drastically reducing tubing connections |
|
Siesta i Breasy is equipped with a fresh gas flow |
|
between circle system (IBS) and auxiliary gas outlet, |
|
and a switch for auto/manual ventilation. |
|
Additional features: O2 flowmeter with separate
outlet |
|
with tube nipple and integrated patient suction unit. |
|
Back-bar for 2 selectatec vaporizers (German or |
|
British standard) with interlock safety mechanism. |
|
|
|
|
|
|
|
|
|
|
|
