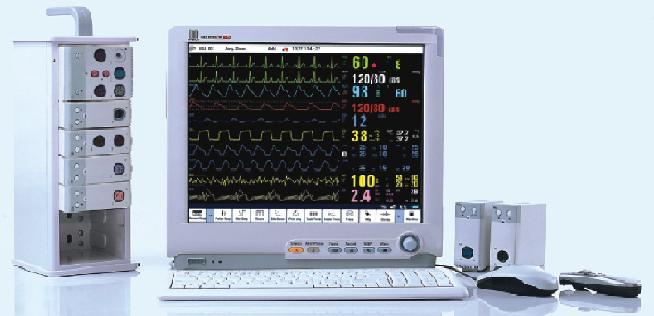

Patient Monitor

BeneView T8

Get more information on

Features and Configurations

Ergonomic Design and Flexible Design

     Advance Modular Monitoring

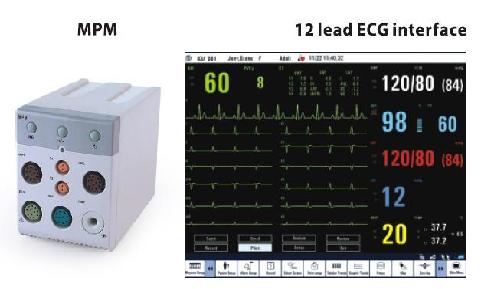

                         Standard parameters in a single compact module, can store up to 8-hour data

                         for patient transport and transfer.

                         Standard: 3/5 lead ECG/Resp, Dual-Temp, Mindray SpO₂, NIBP, Dual-IBP

                         Options: 12 lead ECG, Masimo or Nellcor SpO₂

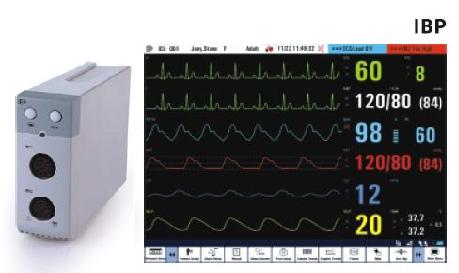

                         Support up to 8 channel IBP measurement.

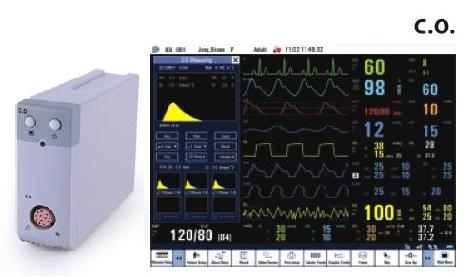

                         Thermodilution technique, a traditional and reliable invasive measurement for

                         cardiac output and other hemodynamic parameters.

                         A safe and easy non-invasive method to measure patient's hemodynamic status.

                         It is widely suitable for patients in the emergency department, step-down units,

                         special procedure areas or ICU. Impedance cardiography is designed for

                         assessment and management of congestive heart failure, hypertension, and

                         pacemaker patients.

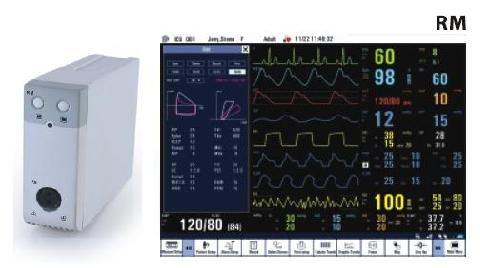

                         A module to measure flow and pressure at the patient's airway with full

                         graphics capability.

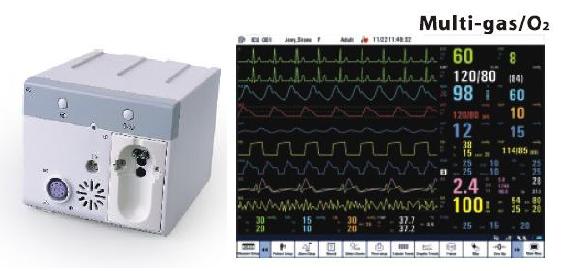

                         A sidestream method to measure the concentration of EtCO2, N20, O2 and five other

                         anesthetic agents. It has a short response time and enables automatic agent

                         identification. It can be integrated with BIS.

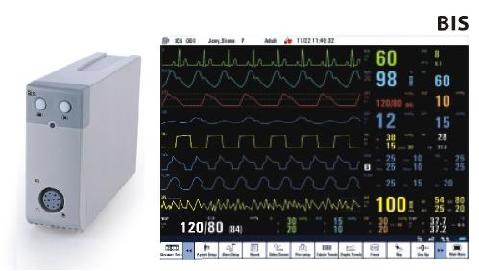

                         A module with BIS XP technology to process the parameter BIS from EEG for brain

                         state monitoring. The BIS value could be a useful reference for physicians to access

                         the level of consciousness and sedation or improve drug selection and management.

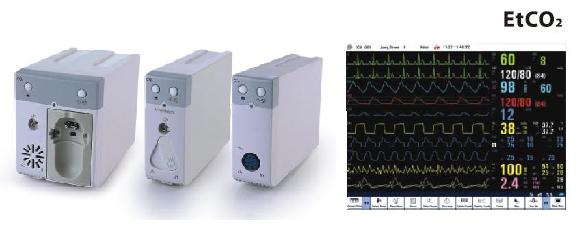

                         Mainstream method uses a CO2 sensor attached to an airway adapter directly inserted

                         into the patient's breathing system, suitable for intubated patients.

                         Sidestream method samples a constant respiratory gas from the patient's airway

                         and analyzes it by a CO2 sensor inside the module, suitable for non-intubated

                         and intubated patients.

                         Microstream method is a sidestream method but with a lower sampling volume,

                         suitable for neonatal patients.
